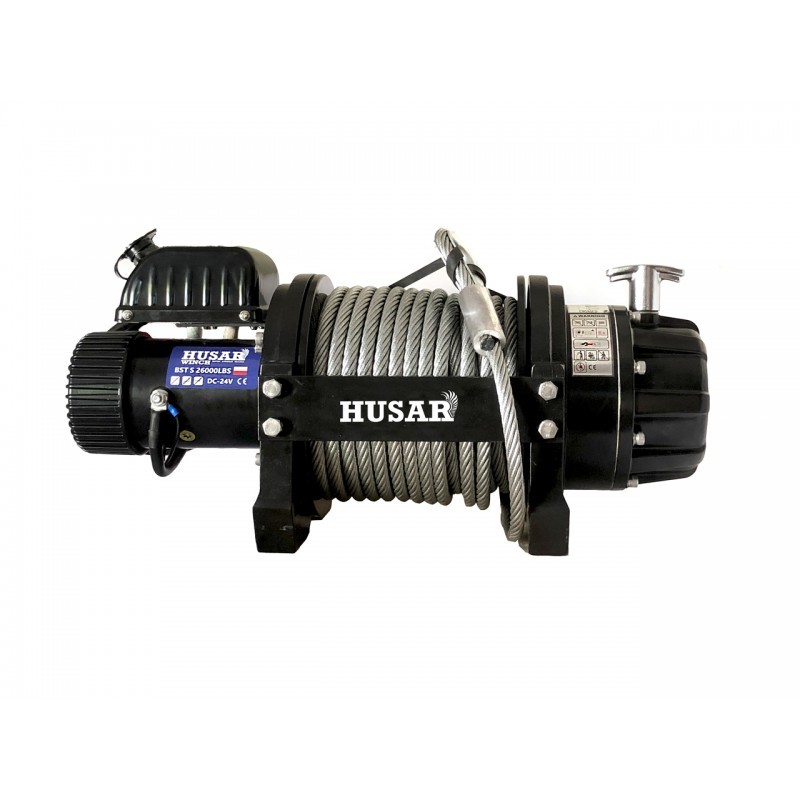

HusarWinch BST S 26000 lbs (11 793 kg) 24V
Application: special passenger cars, commercial vehicles, tugboats
Pull capacity(single line): 26000lbs / 11 793 kg
Motor 24V: 6,1kW / 8,2KM
Controls: Wired / wireless remote control
Gear: 3-stage planetary
Gear ratio: 450:1
Brake: Automatic
Rope: 26,5 m x Ø13,8 mm
Fairlead: 4-ways rollers fairlead
Net weight: 99,5 kg
Mounting bolt pattern: 254 mm × 114,3 mm és 254 mm × 190,5 mm
Dimensions(L x W x H): 638 × 298 × 300 mm
Line speed and motor current (first layer)
|
Line pull |
lbs |
0 |
5000 |
10000 |
15000 |
20000 |
26000 |
|
kg |
0 |
2268 |
4536 |
6804 |
9072 |
11793 |
Line speed |
m/min 24V |
9.3 |
3.4 |
2.5 |
2 |
1.6 |
1.1 |
Motor current |
Amper 24V |
23 |
90 |
140 |
180 |
230 |
280 |
Line pull and cable capacity
|
Layer of cable |
|
1 |
2 |
3 |
4 |
|
|
Rated line pull per layer |
lbs |
26000 |
21553 |
18406 |
16060 |
|
|
|
kg |
11793 |
9776 |
8348 |
7284 |
|
|
Cable capacity per layer |
m |
5.4 |
12 |
19.7 |
26.5 |
|
|
